A step-by-step guide to upgrading a Kubernetes cluster simplified

Tutorial Image

Source: www.cajieh.com

Pre-requisite:

  • Basic knowledge of Container technology and kubernetes are required
  • Proficient in the use of command line tools i.e. Bash terminal
  • Access to a Kubernetes cluster if you want to experiment with the example in this tutorial

Introduction

Upgrading a Kubernetes cluster requires a sequential update of the control plane components followed by the worker nodes. This tutorial will guide you on how to utilize kubeadm, a built-in Kubernetes CLI tool, for the process. For the sake of simplicity, we'll consider a Kubernetes cluster composed of a control plane node and a worker node, both of which need to be upgraded to the latest version. Once you've accessed the control plane of the Kubernetes cluster, the first step is to check the nodes in the cluster.

Upgrade the controlplane node to the target version

Step #1: View cluster nodes

$ k get nodes
NAME           STATUS   ROLES           AGE   VERSION
controlplane   Ready    control-plane   14d   v1.30.0
node01         Ready    <none>            14d   v1.30.0

In our scenario, our Kubernetes cluster consists of a control plane and a worker node.

Step #2: Drain the controlplane node

This step ensures that the control plane node is safely evicted of workloads before the upgrade.

$ kubectl drain controlplane --ignore-daemonsets
pod/local-path-provisioner-75655fcf79-xw9b6 evicted
node/controlplane drained

This action would evict all the workloads such as pods in the cluster and uncordon the node.

Note: Throughout this tutorial, always remember to replace the name of component and version such as “controlplane” and “v1.30.0” with the actual name of your control plane node and version respectively. Also, in most command executions, we'll be showing the tail of the output.

Step #3: Plan the upgrade

Before starting the controlplane upgrade process, we have to plan the upgrade by checking the kubeadm version and the cluster target version to see if kubeadm requires an upgrade before the cluster node upgrade. This can be done using the kubeadm upgrade plan command which displays information about the current and target versions of the cluster components.

$ kubeadm upgrade plan

[upgrade/config] Making sure the configuration is correct:
[preflight] Running pre-flight checks.
[upgrade/config] Reading configuration from the cluster...
[upgrade/config] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[upgrade] Running cluster health checks
[upgrade] Fetching available versions to upgrade to
[upgrade/versions] Cluster version: 1.30.0
[upgrade/versions] kubeadm version: v1.30.0  // Current version
[upgrade/versions] Target version: v1.30.3       // Target version
[upgrade/versions] Latest version in the v1.30 series: v1.30.3

Components that must be upgraded manually after you have upgraded the control plane with 'kubeadm upgrade apply':
COMPONENT   NODE           CURRENT   TARGET
kubelet     controlplane   v1.30.0   v1.30.3
kubelet     node01         v1.30.0   v1.30.3

Upgrade to the latest version in the v1.30 series:

COMPONENT                 NODE           CURRENT    TARGET
kube-apiserver            controlplane   v1.30.0    v1.30.3
kube-controller-manager   controlplane   v1.30.0    v1.30.3
kube-scheduler            controlplane   v1.30.0    v1.30.3
kube-proxy                               1.30.0     v1.30.3
CoreDNS                                  v1.11.1    v1.11.1
etcd                      controlplane   3.5.12-0   3.5.12-0

You can now apply the upgrade by executing the following command:

        kubeadm upgrade apply v1.30.3  // Target version

Note: Before you can perform this upgrade, you have to update kubeadm to v1.30.3.
_____________________________________________________________________

The table below shows the current state of component configs as understood by this version of kubeadm.
Configs that have a "yes" mark in the "MANUAL UPGRADE REQUIRED" column require manual config upgrade or
resetting to kubeadm defaults before a successful upgrade can be performed. The version to manually
upgrade to is denoted in the "PREFERRED VERSION" column.

API GROUP                 CURRENT VERSION   PREFERRED VERSION   MANUAL UPGRADE REQUIRED
kubeproxy.config.k8s.io   v1alpha1          v1alpha1            no
kubelet.config.k8s.io     v1beta1           v1beta1             no
__________________________________________________________________

For this step the full output is shown since it contains useful information for the cluster upgrade. In the output, we can see that the target version is v1.30.3, and that the current version of kubeadm doesn't match the target version. Therefore, we must first upgrade kubeadm before upgrading the other cluster components.

Step #4: Upgrade the kubeadm to match the target version

sudo apt-get update && sudo apt-get install -y kubeadm=1.30.3-1.1

Confirm that the kubeadm has been upgraded to 1.30.3

kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"30", GitVersion:"v1.30.3", GitCommit:"6fc0a69044f1ac4c13841ec4391224a2df241460", GitTreeState:"clean", BuildDate:"2024-07-16T23:53:15Z", GoVersion:"go1.22.5", Compiler:"gc", Platform:"linux/amd64"}

Step #5: Upgrade the controlplane node

Run kubeadm upgrade apply command specifying the target version of v1.30.3 to upgrade the controlplane node.

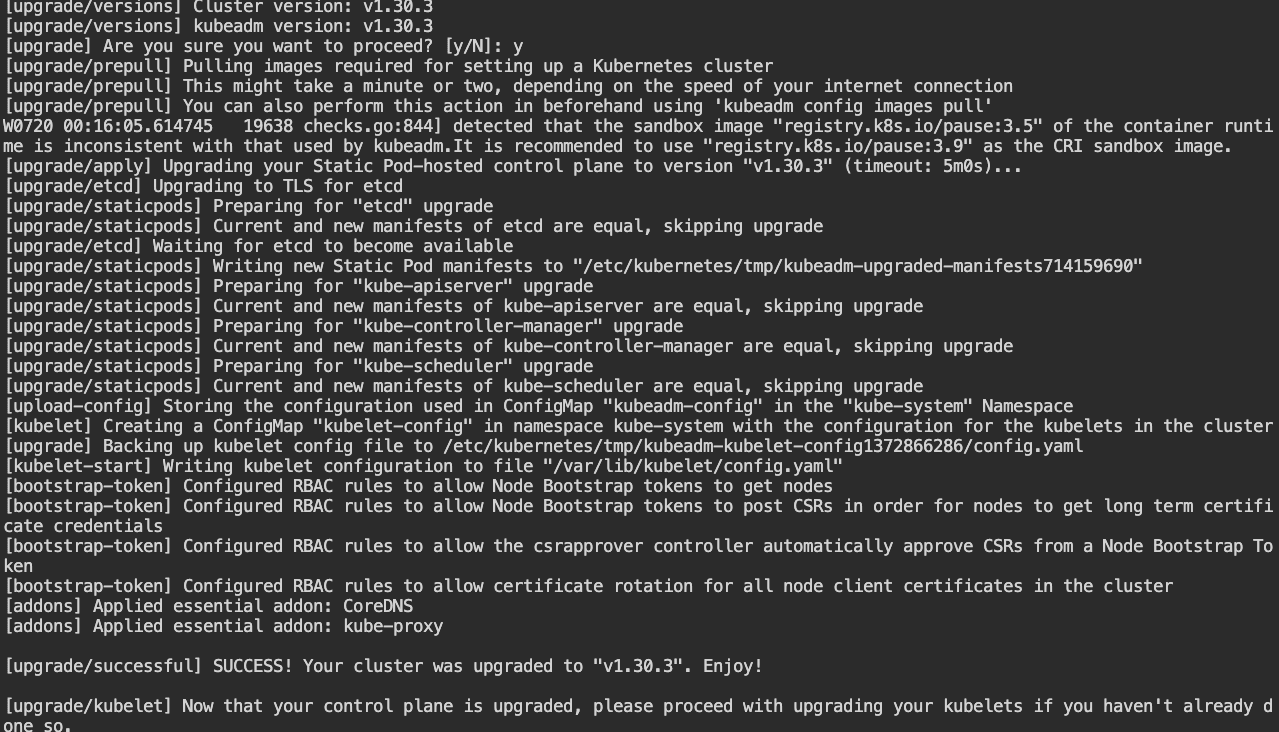

sudo kubeadm upgrade apply v1.30.3

upgrade/versions] Cluster version: v1.30.0
[upgrade/versions] kubeadm version: v1.30.3
[upgrade] Are you sure you want to proceed? [y/N]: y  // Type “y” to continue the upgrade

[upgrade/staticpods] Waiting for the kubelet to restart the component
[upgrade/staticpods] This can take up to 5m0s

[upgrade/successful] SUCCESS! Your cluster was upgraded to "v1.30.3". Enjoy!

[upgrade/kubelet] Now that your control plane is upgraded, please proceed with upgrading your kubelets if you haven't already done so.

Step #6: Upgrade the controlplane node

Additionally, we need to upgrade the versions of kubelet and kubectl to match the target versions. The kubelet is an agent that runs on each node and is a key component of a Kubernetes node while kubectl is a CLI tool for interacting with a Kubernetes cluster.

sudo apt-get update && sudo apt-get install -y kubelet=1.30.3-1.1 && kubectl=1.30.3-1.1

Hit:1 https://prod-cdn.packages.k8s.io/repositories/isv:/kubernetes:/core:/stable:/v1.28/deb  InRelease
Hit:2 https://prod-cdn.packages.k8s.io/repositories/isv:/kubernetes:/core:/stable:/v1.29/deb  InRelease
----
The default action is to keep your current version.
*** kubelet (Y/I/N/O/D/Z) [default=N] ? y Type “y” to continue the process

---
The default action is to keep your current version.
*** kubelet (Y/I/N/O/D/Z) [default=N] ? y
Installing new version of config file /etc/default/kubelet ...

Step #7: Restart the kubelet

Next, we have to restart the kubelet using the following command:

sudo systemctl daemon-reload && systemctl restart kubelet

Step #8: View the nodes

Next, we check the nodes again to view the status of the control plane node that we just upgraded.

$ k get no
NAME           STATUS                     ROLES           AGE   VERSION
controlplane   Ready,SchedulingDisabled   control-plane   14d   v1.30.3
node01         Ready                      <none>          14d   v1.30.0

In the output, we see that the controlplane node status is Ready,SchedulingDisabled. The Ready condition indicates that the node is healthy and available to accept pods, but the SchedulingDisabled condition means that no new pods can be scheduled to the node. This is expected because we previously drained the control plane, which subsequently cordoned off the node.

Step #9: Uncordon the controlplane node

Let’s uncordon the controlplane node to allow new pods scheduling and view the nodes status again.

kubectl uncordon controlplane
node/controlplane already uncordoned

$ k get no
NAME           STATUS   ROLES           AGE   VERSION
controlplane   Ready    control-plane   14d   v1.30.3
node01         Ready    <none>          14d   v1.30.0

Great! The upgrade process of the control plane node from v1.30.0 to v1.30.3 has successfully completed. Next, we'll look at how to upgrade the worker node in the following section.

Upgrade the worker node to the latest target version

In our scenario, the worker node is named node01 and it's a Linux-based system, so our instructions will be based on that. However, if you're upgrading a Windows-based system, please refer to the Kubernetes official docs on Upgrading Windows nodes

Step #1: SSH into the worker node

$ ssh node01

Step #2: View kubeadm version

kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"30", GitVersion:"v1.30.0", GitCommit:"7c48c2bd72b9bf5c44d21d7338cc7bea77d0ad2a", GitTreeState:"clean", BuildDate:"2024-04-17T17:34:08Z", GoVersion:"go1.22.2", Compiler:"gc", Platform:"linux/amd64"}

Step #3: Upgrade the kubeadm

Run the same kubeadm upgrade command that was previously used to upgrade the control plane node. See it again below

sudo apt-get update && sudo apt-get install -y kubeadm=1.30.3-1.1

Reading state information... Done
The following packages will be upgraded:
  kubeadm
1 upgraded, 0 newly installed, 0 to remove and 178 not upgraded.
Need to get 10.4 MB of archives.

Step #4: View kubeadm version

Verify the version again

kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"30", GitVersion:"v1.30.3", GitCommit:"6fc0a69044f1ac4c13841ec4391224a2df241460", GitTreeState:"clean", BuildDate:"2024-07-16T23:53:15Z", GoVersion:"go1.22.5", Compiler:"gc", Platform:"linux/amd64"}

Step #5: Upgrade the local kubelet configuration for the worker node

Next, invoke the kubeadm upgrade command to upgrade the local kubelet configuration for the worker node.

$ kubeadm upgrade node

[upgrade] The configuration for this node was successfully updated!
[upgrade] Now you should go ahead and upgrade the kubelet package using your package manager.

Awesome, the upgrade for the kubelet configuration was successful, but as indicated in the output of the kubeadm upgrade node, we also need to upgrade the kubelet and kubecli packages

Step #6: Drain the worker node

Initiate maintenance on the node by setting it as non-schedulable and removing the workloads

kubectl drain node01 --ignore-daemonsets

Step #7: Upgrade the kubelet and kubectl

sudo apt-get update && sudo apt-get install -y kubelet=1.30.3-1.1 && kubectl=1.30.3-1.1
 The default action is to keep your current version.
*** kubelet (Y/I/N/O/D/Z) [default=N] ? y
Installing new version of config file /etc/default/kubelet ...
node01 $ k get no

Step #8: Restart the kubelet

sudo systemctl daemon-reload && systemctl restart kubelet

Step #9: Uncordon the worker node

Next, uncordon the worker node to allow new pod scheduling, and then view the node status again

kubectl uncordon controlplane
node/controlplane already uncordoned

Step #10: Exit the worker node

Exit node01 to go back to the controlplane node. Then, view nodes again:

node01 $ exit
controlplane $
controlplane $ k get no
NAME           STATUS   ROLES           AGE   VERSION
controlplane   Ready    control-plane   14d   v1.30.3
node01         Ready    <none>          14d   v1.30.3

Awesome! The controlplane and worker node have been updated from version v1.30.0 to v1.30.3, and other dependencies such as kubeadm, kubelet, and kubectl were updated to the same version. This concludes the steps for upgrading a Kubernetes cluster, composed of a control plane and a worker node, from its current version to the target version

Please note that this is a simplified guide. Depending on your specific setup and requirements, the upgrade process may involve additional steps or considerations. Always refer to the official Kubernetes documentation for the most accurate and detailed instructions.

I hope this helps! Go to the contact page and let me know if you have any further questions.

Happy learning!
